Slide Rail

Slide Rail model FBL is a thin, compact, lightweight and ultra-low price slide unit for finite motion. It has two rows of balls placed between an inner rail (made of a steel sheet roll-formed with precision) and an outer rail. The balls are evenly spaced by a cage press-molded with precision, thus eliminating friction between balls and achieving a smooth slide mechanism.

Filter

10 items
content loaded

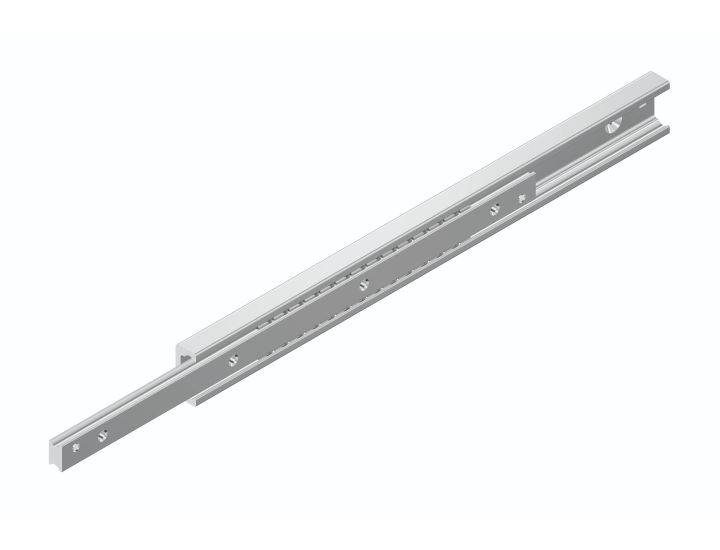

ATG22S
ATG22S
Overall Height(mm)-Range:11
Permissible Load per Pair(N)-Range:1690-3920
Rail Length(mm)-Range:130-690
ATG28S
ATG28S
Overall Height(mm)-Range:13
Permissible Load per Pair(N)-Range:3410-6600
Rail Length(mm)-Range:130-690
ATG35S
ATG35S
Overall Height(mm)-Range:17
Permissible Load per Pair(N)-Range:5150-9740
Rail Length(mm)-Range:210-690

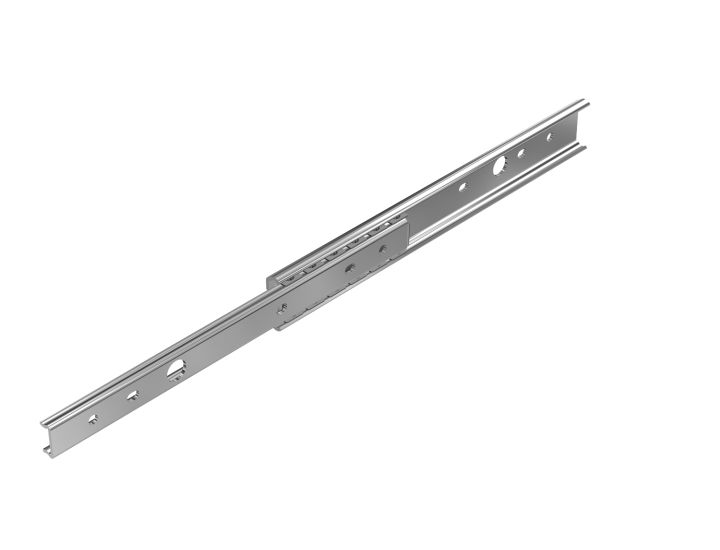

FBL27S
FBL27S
Overall Height(mm)-Range:9.5
Permissible Load per Pair(N)-Range:180-260
Rail Length(mm)-Range:200-500
FBL35S
FBL35S
Overall Height(mm)-Range:9.5
Permissible Load per Pair(N)-Range:270-490
Rail Length(mm)-Range:305-711
FBL27D
FBL27D
Overall Height(mm)-Range:19.1
Permissible Load per Pair(N)-Range:280-370
Rail Length(mm)-Range:200-500
FBL35D
FBL35D
Overall Height(mm)-Range:19.1
Permissible Load per Pair(N)-Range:441-588
Rail Length(mm)-Range:305-711
FBL35G-P14
FBL35G-P14
Overall Height(mm)-Range:19.1
Permissible Load per Pair(N)-Range:355-623
Rail Length(mm)-Range:305-711
FBL51H
FBL51H
Overall Height(mm)-Range:12.7
Permissible Load per Pair(N)-Range:580-850
Rail Length(mm)-Range:305-762
