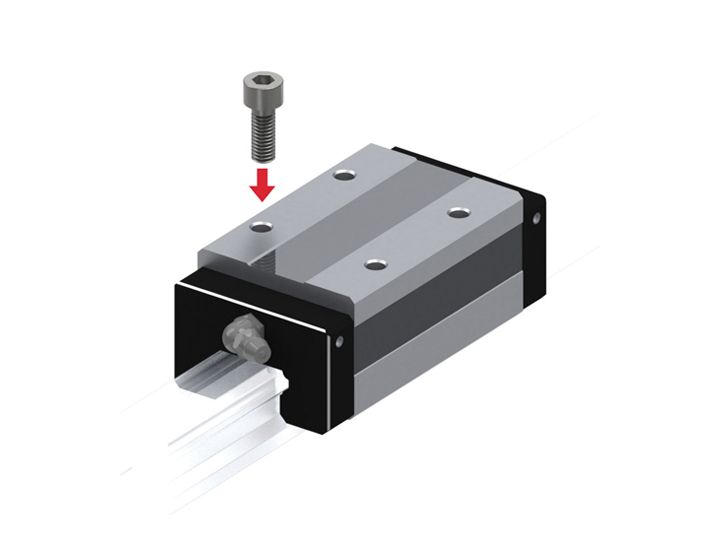

SHS-RM Block - Stainless

The LM block has a smaller width (W) and the mounting holes are tapped. It succeeds the height dimension of full-ball type LM Guide HSR-R. Carbon Steel version is also available. More detailed specifications are available in our digital catalog.

Block Width(mm)-Range : 34-48

Overall Height(mm)-Range : 28-40

Size-Range : 15-25

Product Category : Block Only

Product Type : Global Standard-4 Way Equal Loading

Material : Stainless Steel (400 series)

Guide Method : Caged Ball-Long Term Maintenance Free

Model : SHS

SHS-RM Block - Stainless
