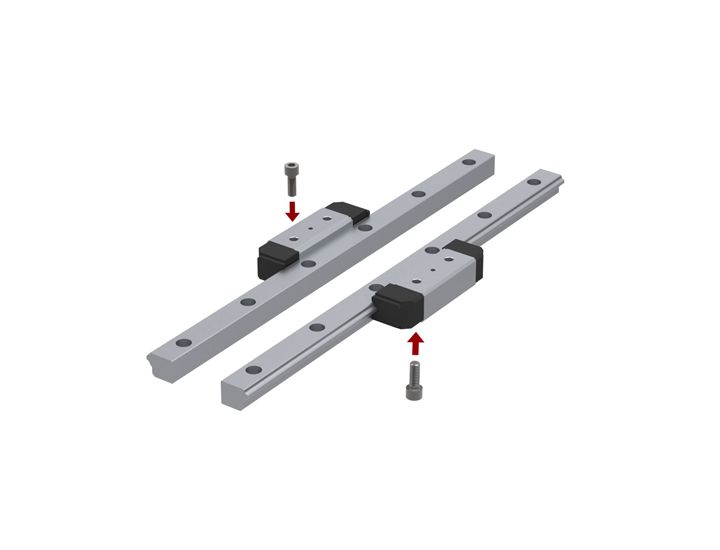

HR Set
An LM Guide that is capable of receiving the identical load in the 4 directions with parallel installation of 2 rails, has a low sectional height and allows the clearance to be adjusted. More detailed specifications are available in our digital catalog.
Block Width(mm)-Range : 11.4-26.3
Overall Height(mm)-Range : 8.5-20
Rail Width(mm)-Range : 6.7-15.6
Size-Range : 918-2042
Product Category : Block & Rail Set
Product Type : Separate Type
Material : Carbon Steel
Guide Method : Full Ball-Conventional Type
Model : HR
