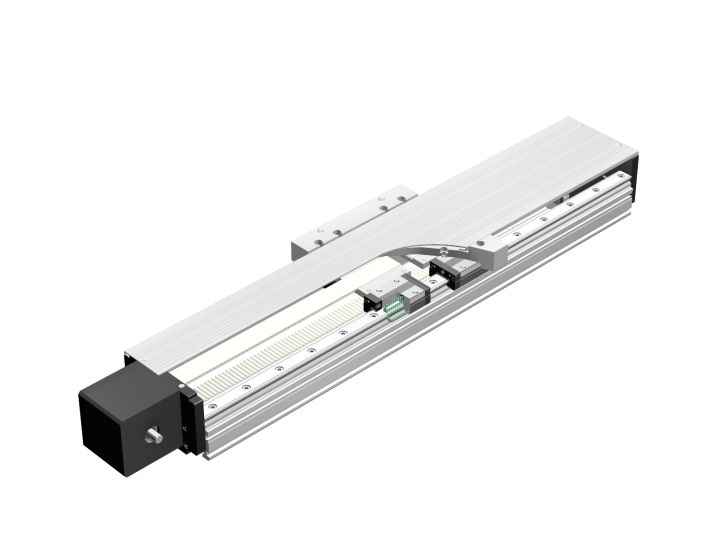

GL-N-B
Lightweight, high rigidity aluminum base with Caged Ball LM Guides has been utilized for the guide portion. More detailed specifications are available in our digital catalog.
Height(mm)-Range : 75.6-90
Horizontal Max Payload(kg)-Range : 30-50
Max Speed(mm/s)-Range : 1100-1200
Stroke(mm)-Range : 400-1686
Width(mm)-Range : 154-180
Product Type : Linear Actuator - Slider Type
Drive Method : Belt
Model : GL-N
